Coriolis Mass Flow Meters

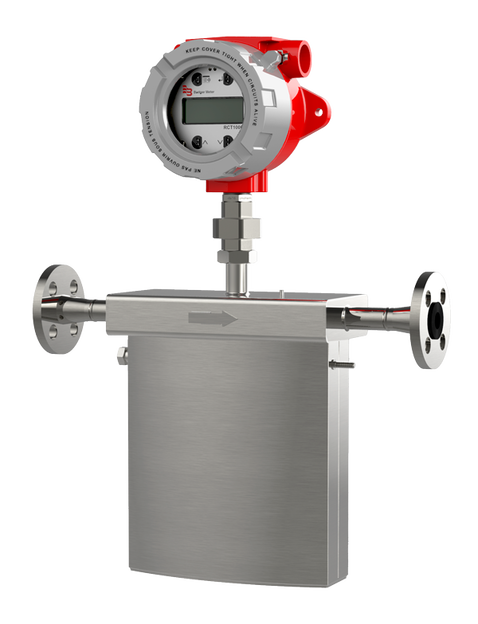

The RCT1000 Coriolis mass flow meter identifies flow rate by directly measuring fluid mass over a wide range of temperatures with a high degree of accuracy. For fluids consisting of two liquids or a liquid with suspended solids, this system can derive the concentration and mass of each fluid based on the density measurement. The unobstructed, open-flow design makes it suitable for a variety of fluids, such as slurries and other viscous, nonconductive fluids.
request a quote
SIMULTEANEOUS MEASUREMENT OF:
  • MASS FLOW
  • DENSITY
  • TEMPERATURE
Advantages:
  • Unobstructed open flow design
  • Low-maintenance operation with no free-moving parts
  • Modbus RTU, Modbus TCP/IP, HART, and EtherNet I/P network options
  • Advanced fluid diagnostic tools
  • Batching and PID control

Specifications:
  • Pipe size; 1/16...3in. (1.6....76.2mm)
  • Accuracy:
    • liquids: up to ±0.1%flow rate
    • density: up to ±0.0005 g/cm³​
  • Zero stability: up to ±0.025% of full scale
  • Repeatability: up to ±0.05% of flow rate
  • Process temperature range: -40...392 degrees C (-40...200 degrees C)
  • General area or hazardous location​
