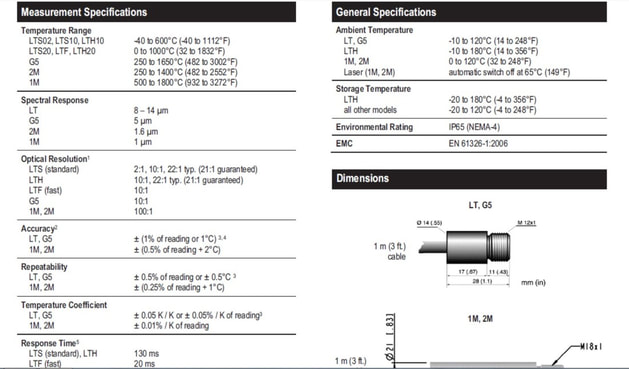

MI3 SENSING HEAD DATASHEET

Mi3 communications box datasheet

product overview

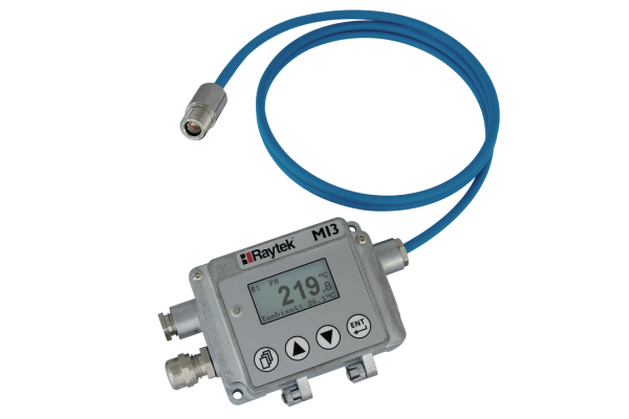

Each MI3 infrared temperature thermometer is a two piece system with a miniature sensing head and separate I/O communications electronics box. The miniature sensing head can be installed in any system and outperforms much larger sensors, making the Raytek MI3 the best valued IR temperature sensor in its class. ​

Request a quote or Ask a question

• ​Digital infrared thermometer with wide temperature range from -40 to 1800°C (-40 to 3272°F)
• High temperature resistance for the head up to 180°C (356°F) without cooling
• Precision high resolution optics up to 100:1
• Plug-and play connection of the sensing head
• Intuitive user interface with high resolution LCD
• Rugged IP 65 (NEMA-4) stainless steel sensing head
• Available with Profinet and Ethernet communication interface
• MI3 ATEX/IECEx certified sensors for explosive environments
• Included DataTemp® Multidrop Software
• 10 ms response time
